Global Water recently supplied five EnviroLifts Concrete Pump Stations for a SA Water projects in Adelaide's fast-developing northern region. These included Burgundy Estate, Direk Vicinity, Brookmont Estate, Miravale and Angle Vale developments. They were installed to handle the sewer requirements of the new development.

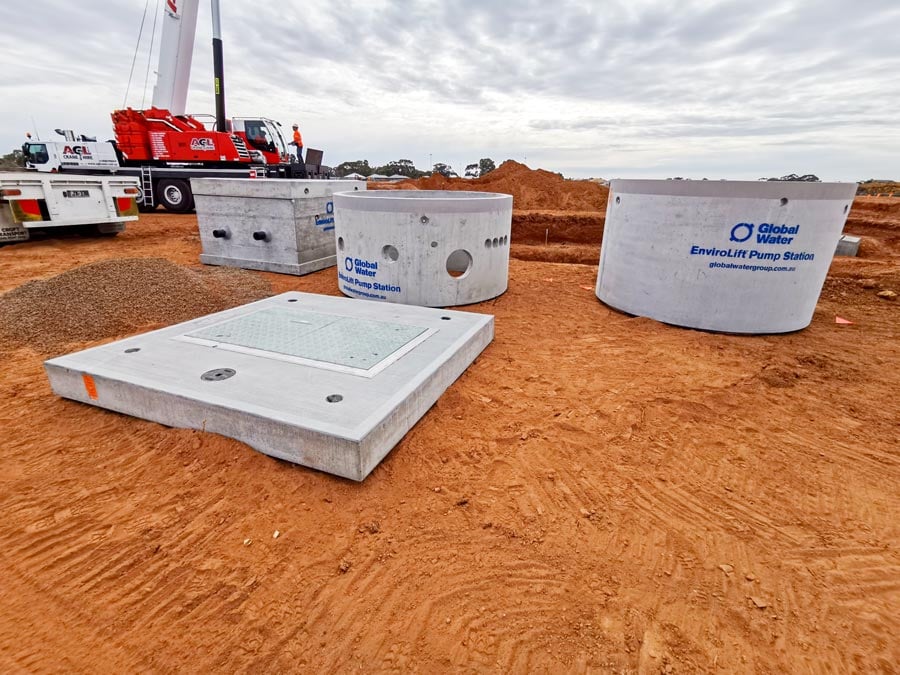

Above: The EnviroLift Pump Stations arriving on site at Angle Vale

EnviroLift Concrete Pump Stations are a popular choice for developments similar to Burgundy at Angle Vale. These pump stations are constructed from high-strength concrete mould-form precast units, which offer the highest levels of engineering quality and reliability.

Key features of the EnviroLift series include, but are not limited to:

• Available in sizes up to ø3600 mm
• Depths to 15m
• Pumps up to ø 450 mm discharge size can be installed
• Passage of solids from 20 to 150mm
• Largest emergency storage volume - 10m³ volume per metre of depth

Characteristics that make the EnviroLift a popular choice

Global Water are continuously seeking ways to improve or refine designs and materials to ensure they meet the many and varied demands of the Australian market.

Concrete chamber

The concrete chamber itself has a smooth, harsh, impervious finish designed to give superior wear life thanks to the combination of high strength (50MPa) Sulphate Resistant (SR) cement and Calcareous Aggregate. To withstand wearing applications, internal coatings or polyethylene linings are available as options.

Pumps and control panels

A complete range of pumps with specialised control panels available to suit a wide variety of applications, including effluent, sewage, tradewaste and stormwater. The submersible pumps used allow for greater flexibility of location, reducing noise and odour pollute and eliminate any pump priming problems.

Integral valve chamber

The EnviroLift’s integral valve chamber offers a operators a complete station as a single package - reducing installation costs. There’s also a small footprint size offering neater installation, shorter cable runs allowing for simple pump replacement and one-way valve chamber drains with very short drain line.

Want to learn more about the EnviroLift?

Get in touch with our Global Water team! We work closely with you to design and develop complete solutions that deliver maximum efficiency and the lowest operational costs over the life of the system.

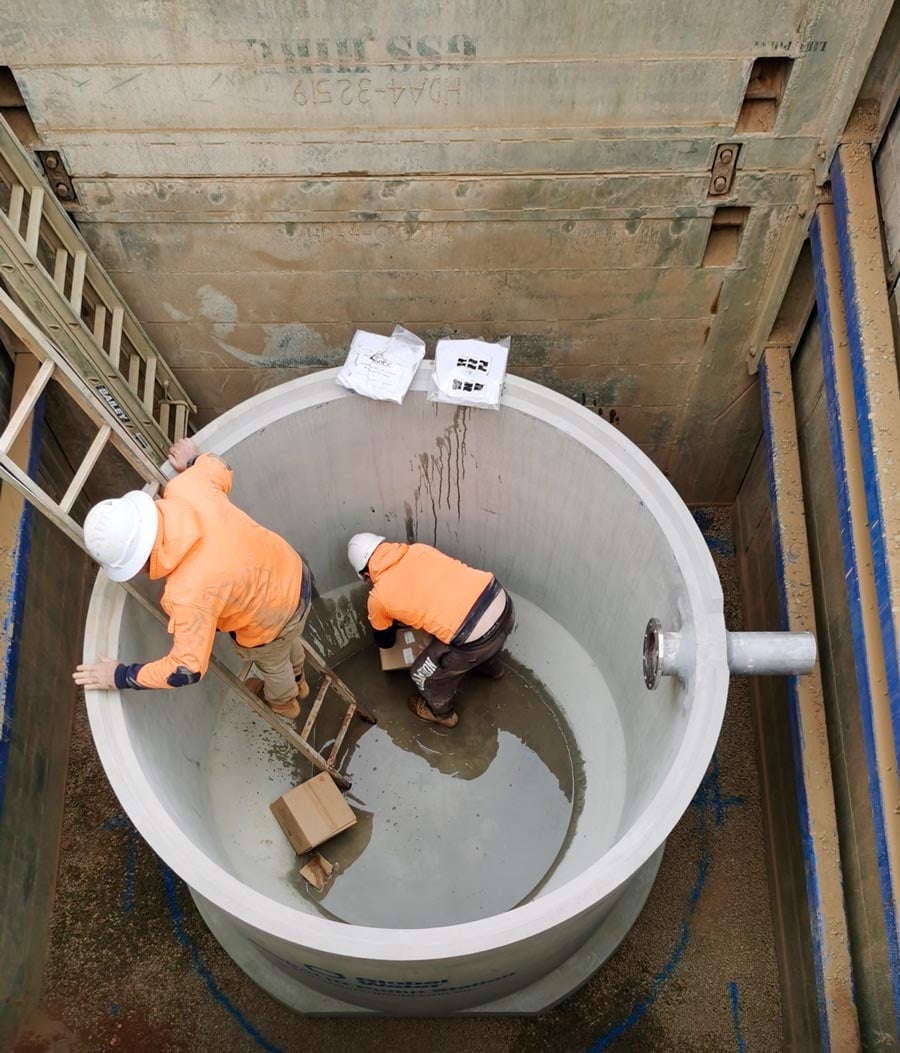

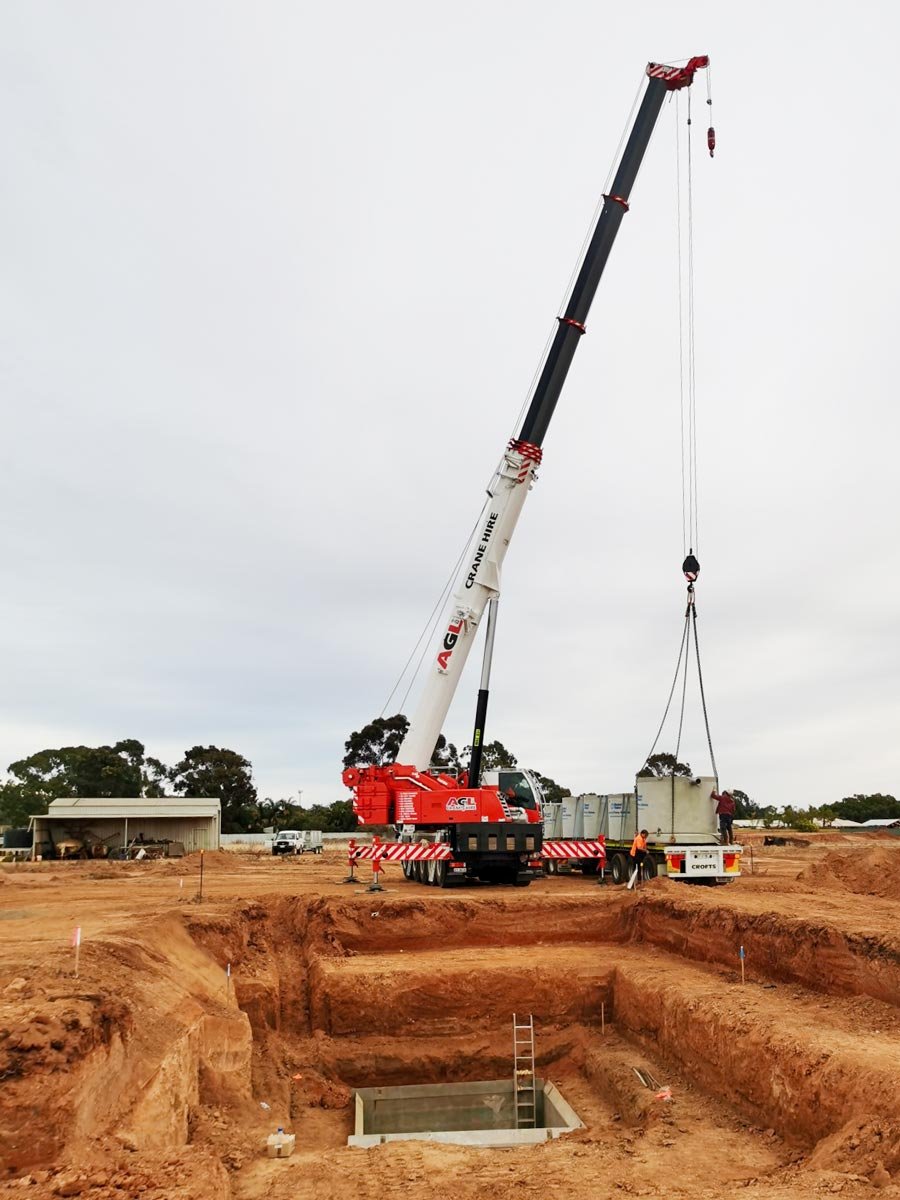

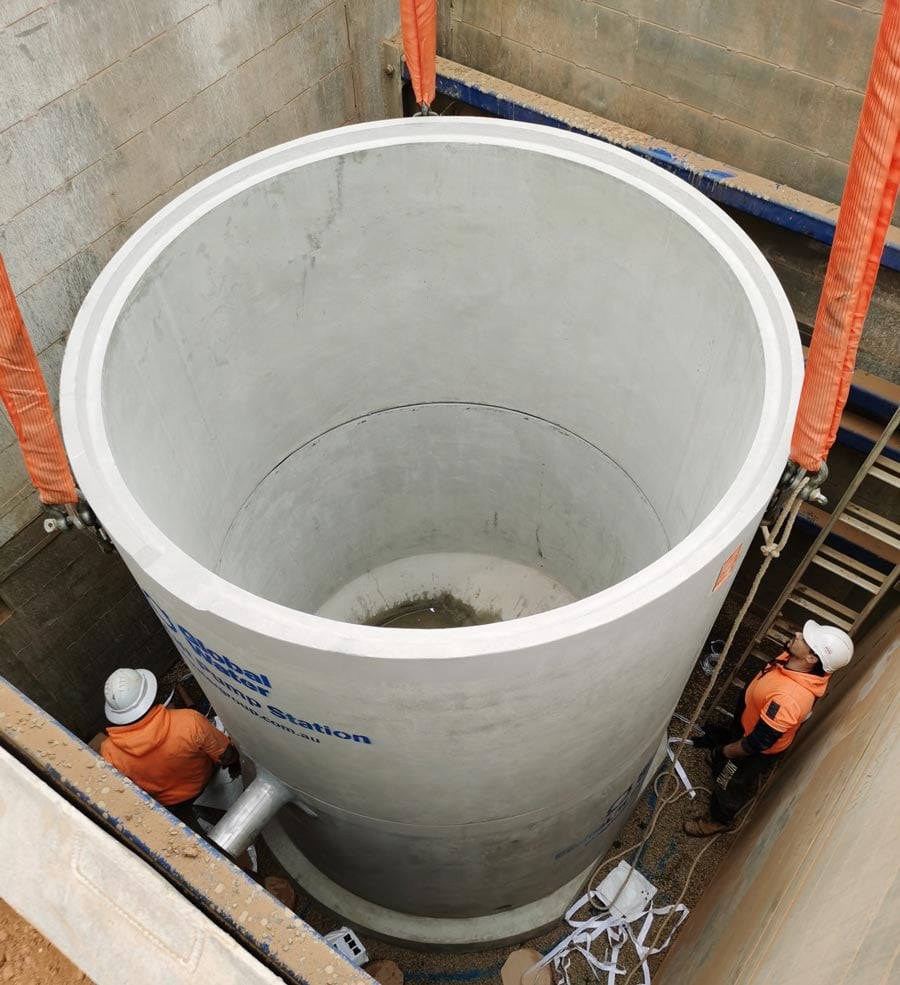

Discover more photos of the project at Angle Vale below...
