Muffin Monster sewage grinders help protect pumps and downstream equipment in wastewater pump stations by shredding wet wipes, rags and other difficult solids before they can cause blockages.

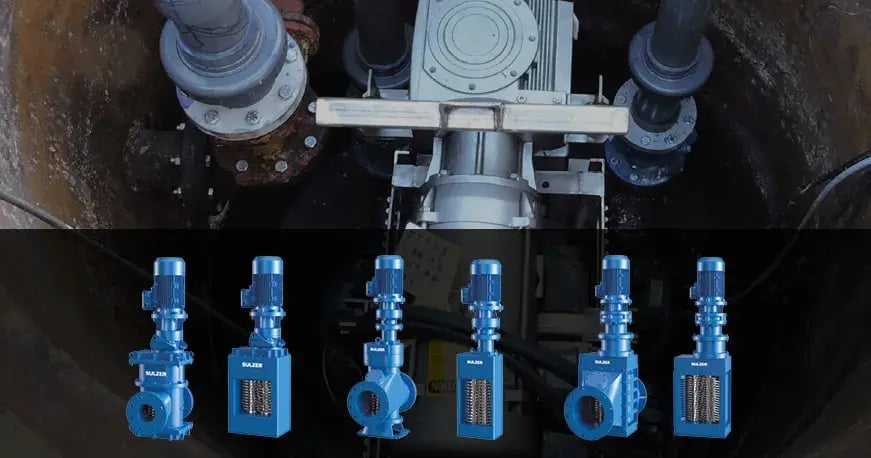

Available in both inline and open channel configurations, Muffin Monster grinders use a slow-speed, high torque dual-shaft grinding mechanism to reduce challenging wastewater solids into smaller pieces that can pass more easily through the system. While the grinding principle is the same, the way wastewater reaches the grinder differs between the two configurations.

Understanding these differences can help determine which Muffin Monster solution is best suited to a pump station.

Why use a sewage grinder in a pump station?

A sewage grinder is used in a pump station to reduce difficult solids before they reach pumps and other downstream equipment, helping minimise the risk of blockages, jamming and associated maintenance.

Wastewater pump stations can encounter wet wipes, sanitary products, socks, rags and small hard objects. Conventional pumps and grinder pumps can struggle when faced with these challenging materials, potentially resulting in frequent maintenance or operational issues.

By installing a dedicated wastewater grinder upstream, these solids can be cut and shredded before reaching the equipment that needs protection.

How do Muffin Monster grinders work?

Muffin Monster grinders use a dual shaft grinding mechanism to capture and shred solids carried in the wastewater stream.

As wastewater passes through the grinder, difficult solids are drawn into the cutting mechanism and reduced into smaller pieces. This helps the material travel through the wastewater system while protecting pumps and other downstream equipment from larger solids that could otherwise cause problems.

Different cutter options are available to suit the characteristics of the wastewater and the solids being processed.

What is the difference between an open channel and inline Muffin Monster grinder?

The main difference between an open channel and inline Muffin Monster grinder is how wastewater flows through the unit. A Muffin Monster inline grinder is installed within a sealed, pressurised pipeline, while a Muffin Monster open channel grinder sits within an open trough or channel where wastewater flows through by gravity.

Internally, both configurations use the same dual-shaft grinding mechanism. The choice between them therefore depends largely on the hydraulic conditions and layout of the pump station.

When should I use an open channel grinder?

An open channel sewage grinder is suited to pump stations where wastewater flows by gravity through an open channel or trough. The grinder processes solids within the wastewater stream before they continue to downstream pumps or equipment.

The Muffin Monster open channel grinder sits within the channel with an open top. Wastewater is discharged into the channel and falls or flows through the grinder by gravity rather than being forced through under pressure.

Because it relies on gravity flow, the unit needs to be installed level and remains exposed to the atmosphere.

An open channel configuration may be appropriate where:

• wastewater is already conveyed through an open channel or trough
• gravity flow is available
• solids need to be reduced before reaching downstream equipment
• the pump station layout is suited to an open installation

When is an inline grinder the better choice?

An inline sewage grinder is generally better suited to applications where wastewater is conveyed through pressurised pipework. The grinder is installed directly into the pipeline using flanged connections, creating an enclosed pathway through the grinding mechanism.

Unlike an open channel grinder, the Muffin Monster inline grinder does not rely on gravity to move wastewater through the unit. The pipe pushes wastewater through under pressure, and the sealed configuration allows the grinder to operate in different orientations.

An inline grinder may be appropriate where:

• wastewater is travelling through a pressurised pipeline
• an enclosed grinder installation is required
• the grinder needs to be incorporated directly into existing pipework
• the installation requires flexibility in grinder orientation

Can Muffin Monster grinders handle wet wipes, rags and other unflushables?

Yes. Muffin Monster grinders are designed to shred and cut challenging wastewater solids such as wet wipes, rags, tampons, socks and small hard objects before they reach pumps and downstream equipment.

Wet wipes are one of the most common causes of pump station blockages, since they don't break down in water and instead accumulate around pump impellers and equipment. For a closer look at why this happens and how a dedicated grinder helps prevent it, see our guide on why wet wipes clog sewer systems.

Learn more about the impact of wipes on wastewater systems - watch Sulzer’s Solving the Wipes Crisis video to learn more about the problems wipes can create within sewage systems and how grinding technology can help manage challenging solids.

Muffin Monster grinder configurations

The appropriate Muffin Monster model and configuration will depend on the hydraulic conditions, flow requirements, solids and physical constraints of the individual pump station.

At a broader configuration level, the key distinction is:

Specific model selection should also take into account flow rates, pipe or channel dimensions, the solids being processed and the required cutter configuration.

Muffin Monster grinders are available in three series:

- 10K Series: Compact grinders for lower-volume applications and smaller pump stations.
- 30K Series: Designed for municipal wastewater and higher solids loading, with inline and open channel models available.
- 40K Series: Designed for high-flow facilities and heavy solids loading, including large treatment plants and biosolids systems.

Depending on the selected model, inline grinders can handle flows up to 1,558 m³/h, while open channel models can handle flows up to 1,277 m³/h. Actual capacity depends on the application and operating conditions.

Cutter options for different pump station applications

Muffin Monster grinders are available with 7, 11, 13 and 17-tooth cutter options, allowing the cutter stack to be tailored to the waste stream and operational requirements of the pump station. Different cutter configurations produce different particle sizes, helping operators select the appropriate level of solids reduction for the application and downstream equipment.

For wastewater streams where wipes are a particular concern, selected 10K and 30K models are available with Wipes Ready™ technology. This combines serrated cutters and knurled spacers for two-directional cutting, Delta P side rails to direct solids into the cutters, and Optimised Cut Control to improve cutting and cutter cleaning. Optional stainless steel cutters can be specified for the 7, 11 and 13-tooth configurations where required.

Sulzer’s Choosing the Best Cutter for Your Waste Stream video provides further information on how different cutter configurations affect particle size and how to select cutters based on the application.

Smart controllers and custom frames

Muffin Monster installations can incorporate smart controllers and custom frames to support reliable operation and simplify installation within pump stations.

The smart controller uses a load-sensing control system that automatically reverses the grinder to help clear jams, reducing the need for manual intervention. Controllers are available in powder-coated mild steel or stainless steel IP65 enclosures to suit different installation environments.

Custom stainless steel frames are also available to simplify installation and help integrate the grinder into the pump station layout. This can be particularly useful for retrofit applications where existing pipework, infrastructure and available space need to be considered.

How does a Muffin Monster compare with a grinder pump?

A Muffin Monster is a dedicated wastewater grinder that processes solids before they reach pumps or other downstream equipment, while a grinder pump combines pumping and solids reduction within the pump itself.

Conventional grinder pumps can jam or require frequent maintenance when faced with challenging solids such as wet wipes, tampons, socks, rags and small hard objects. A Muffin Monster provides a separate upstream grinding stage designed to shred or cut these materials before they reach the pump.

The most appropriate solution depends on the wastewater characteristics, solids loading, pump station configuration and equipment requiring protection.

How do I select the right Muffin Monster model?

The right Muffin Monster model depends on the wastewater flow, installation type, solids being processed and the pump station's operating requirements. One of the first considerations is whether the application requires an inline or open channel configuration.

Other factors to consider include:

• whether wastewater is conveyed under pressure or by gravity
• pipe or channel dimensions
• wastewater flow requirements
• the type and quantity of solids present
• the required cutter configuration
• available installation space
• control and monitoring requirements
• frame and mounting requirements
• the pumps and downstream equipment requiring protection

Considering the complete application allows the grinder, cutters, controls and installation configuration to be selected to suit the pump station. Sulzer’s Protecting the Modern Wastewater Industry video explores how to evaluate equipment options and select appropriate dual-shaft grinding technology to help protect downstream equipment.

Choosing a Muffin Monster grinder for your pump station

Muffin Monster grinders provide a dedicated way to manage difficult wastewater solids before they become a problem for pumps and downstream equipment.

For pressurised pipework, a Muffin Monster inline grinder provides an enclosed solution that can be integrated directly into the pipeline. Where wastewater flows through an open trough or channel, a Muffin Monster open channel grinder provides solids reduction within a gravity-fed system.

With inline and open channel configurations, different cutter options, smart controllers and custom frames available, Muffin Monster systems can be configured around the requirements of individual pump stations.

Global Water can assist with selecting the appropriate Muffin Monster grinder and configuration for pump station and wastewater applications. Get in touch with our team to discuss your site requirements and determine the right solution for your application.
